Weldy Brand Original Factory Geomembrane WGW300 Welding Machine
Weldy WGW300 Geomembrane HDPE Pond Liner Welding Machine
Geomembrane Welding Machine Description
The WGW 300 hot-wedge welding machine from Weldy, a Leister brand, welds thermoplastic geomembranes made of HDPE (0.8 to 2.5 mm), LDPE, TPO, FPO, PVC* (0.8 to 3.0 mm), etc. effortlessly and reliably. The geomembranes are typically used in landfills and mines, as well as for aquaculture, fish farms, irrigation systems, etc. and are permanently welded together. The WGW 300 has been deliberately designed to be simple and robust. The electrical controls are intelligently arranged.
Geomembrane Welding Machine Specification
| Product Name | Geomembrane Welding Machine |
| Model | WGW300 |
| Input Voltage | 230,50/60HZ |
| Power | 1750W |
| Wedge Size And Material | 80mm CU for HDPE/LDPE. PP |
| Welding Tracks(others one request) | 2x12MM, With Test Channel |
| Max. Welding Pressure | 1400N |
| Max.Overlap Width | 150MM |
| Motor Speed | 0.5-8.5M/Min |
| Weldable Geomembranes | HPDE 0.8-2.5mm LDPE/TPO/FPO/PVC 0.8-3.0MM ,Geomtexile ) (PVC With Steel Wedge Only |
| Max .Wedge Tem. | 450℃ |
| Country of Origin | Made in China |
| Net Weight | 15KG |
Geomembrane Welding Machine Features
- A: Heating and motor can be turned on and off directly with the controls, which enables fast, safe and intuitive operation;
B: WGW 300 weighs 15 kg and can be easily stored and transported in the storage box supplied;
C: A steel wedge is required for welding PVC geomembranes;
D: The WGW 300 automatic welder is equipped with a powerful and durable motor;
Geomembrane Weldng Machine Customer operation
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
Any parts broken or does not work under normal operating,we are free to provide.
Product Tags:
|
|

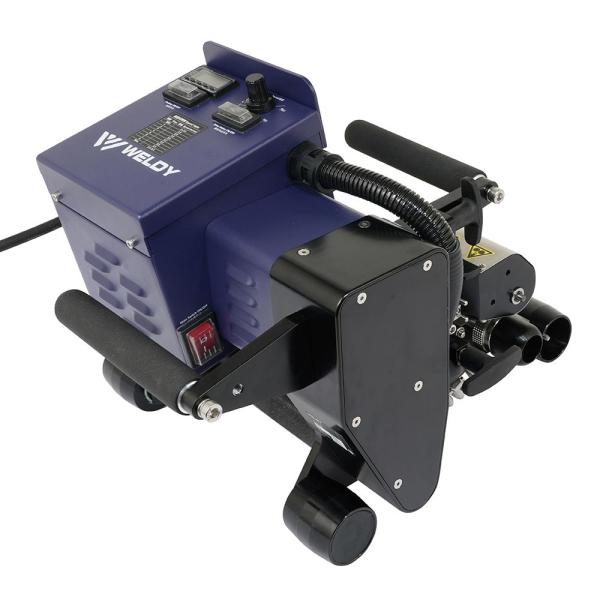

Weldy Brand Geomembrane Welding Machine WGW300 Images
|
